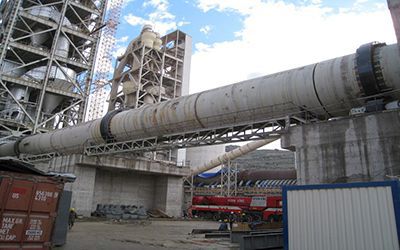

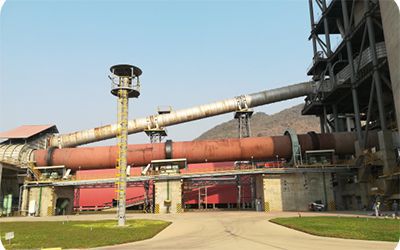

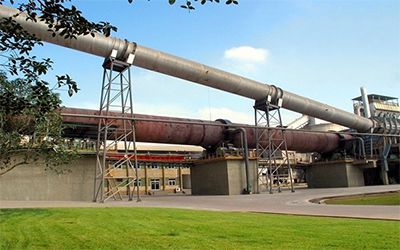

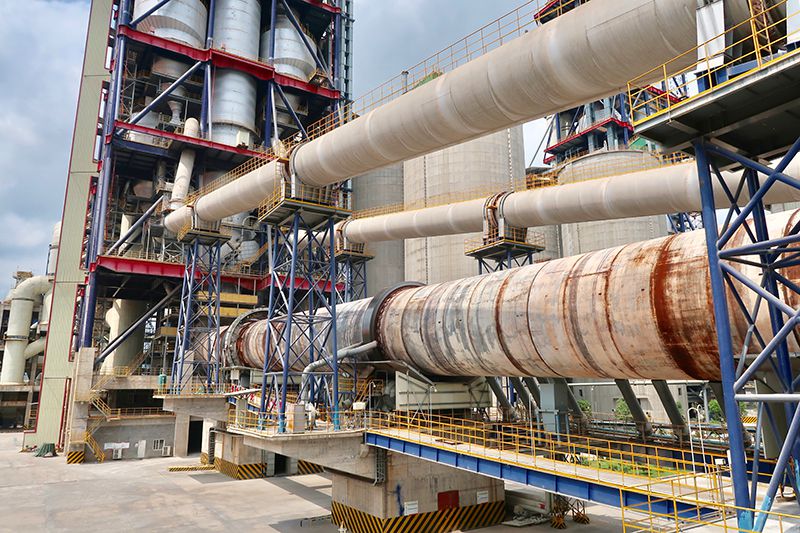

For the construction industry, CITIC HIC has developed large-scale and super-large-scale rotary kilns that are suited to cement production lines with daily output of 10,000-12,000 ton, the size of cement rotary kiln is up to 6.4m in diameter. When it comes to the metallurgy industry, our pellet rotary kilns cover annual output ranging from 600,000 to 6,000,000 ton. In addition, our two large rotary kilns (Ø7.2×136.5m) designed for coal chemical industry have further refreshed the record of the largest diameter of rotary kiln in the domestic market.

CITIC HIC has successfully engineered 70 types of roasting kiln with different specifications for roasting various metals such as feronikel, aluminum oxide, chromic hydroxide, vanadium salts, zinc oxide, and titanium dioxide, which have been exported to Japan, Malaysia, Indonesia, etc.

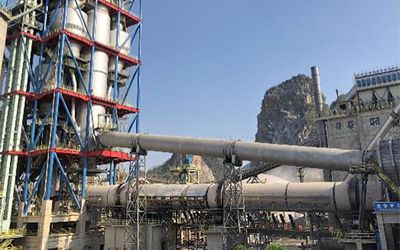

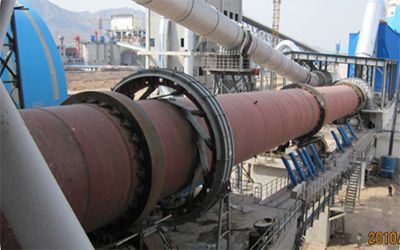

From its entrepreneurial beginnings to today, CITIC HIC has been supplying various rotary kilns to serve a number of large domestic companies such as Conch Cement, Tapai Group, TISCO Group, Baowu Group, Chinalco and MCC Group, as well as customers from the global markets including UAE, Thailand, Pakistan, Indonesia, Turkey, Saudi Arabia, South Africa, Algeria, Egypt, Vietnam, etc. Every product we supply is in compliance with international standards during all stages of manufacturing to acceptance. CITIC HIC ranks first in the TOP 20 Enterprises within China Building Material Machinery Industry for its cement rotary kiln technology, and its LK brand cement rotary kiln won the title of China's Famous Brand Products.

Strength

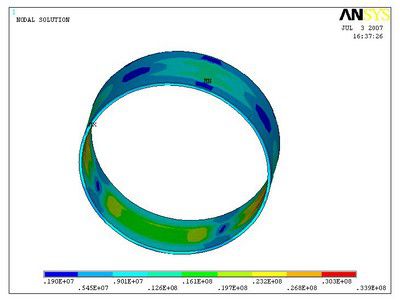

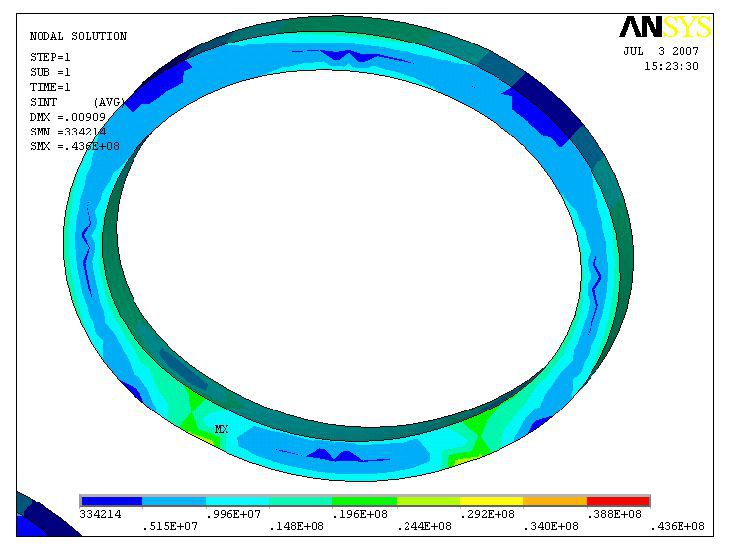

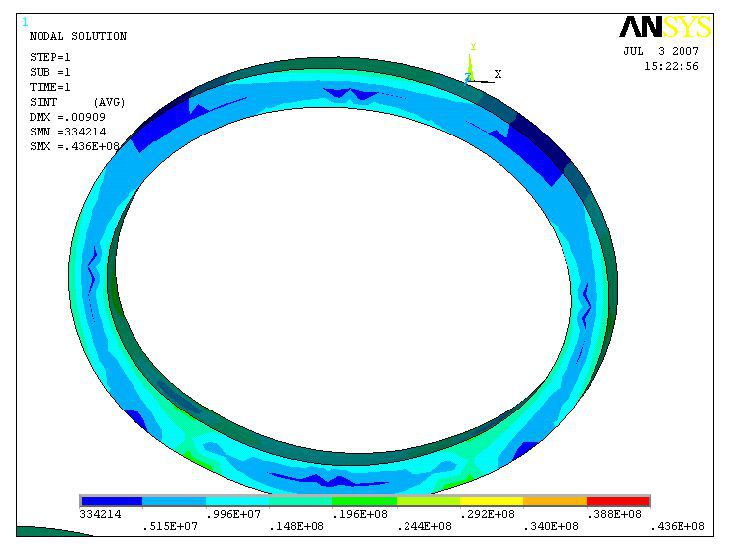

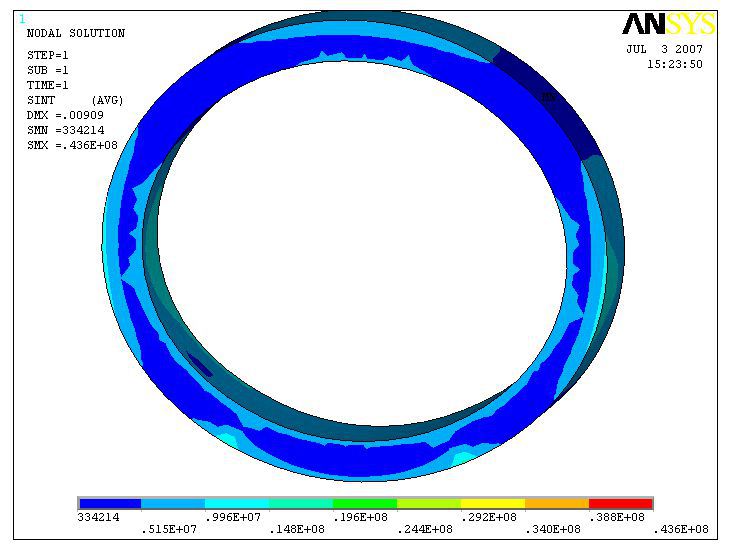

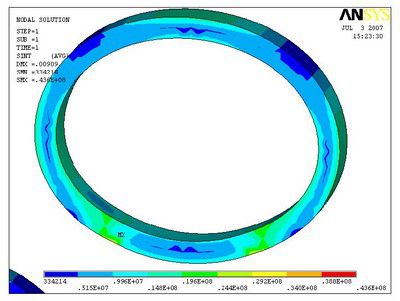

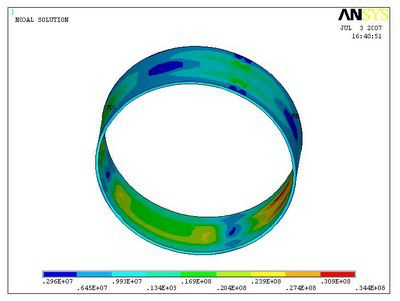

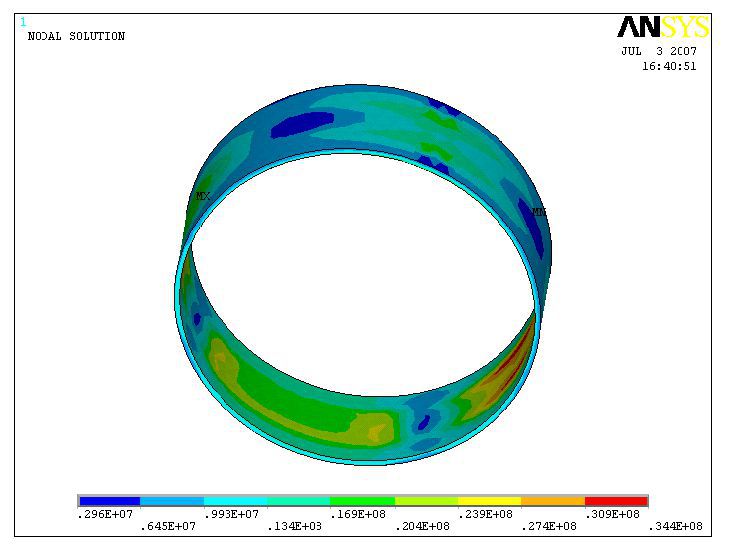

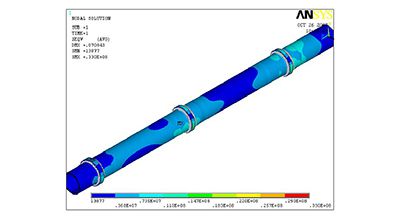

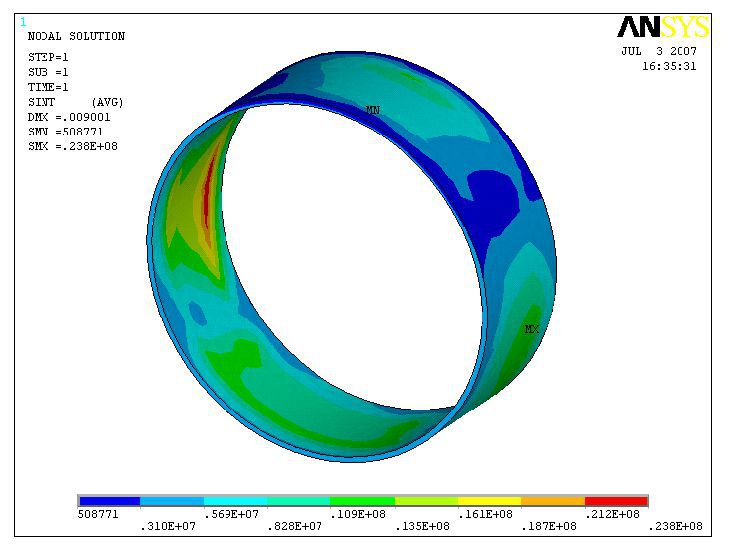

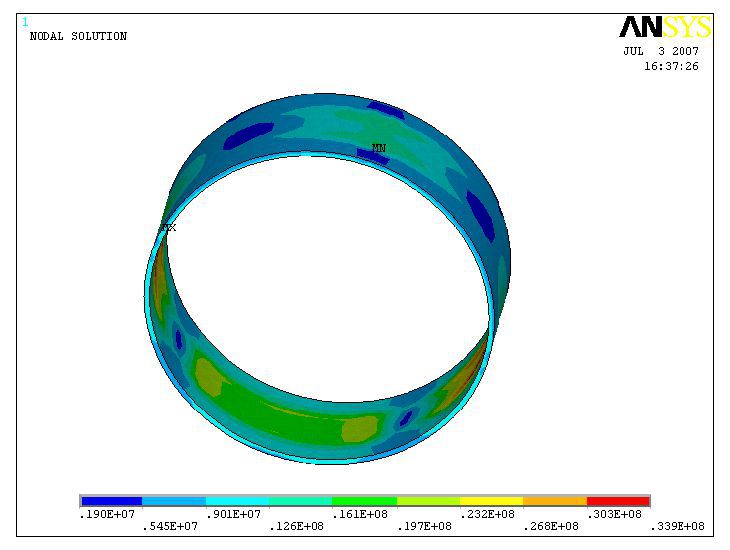

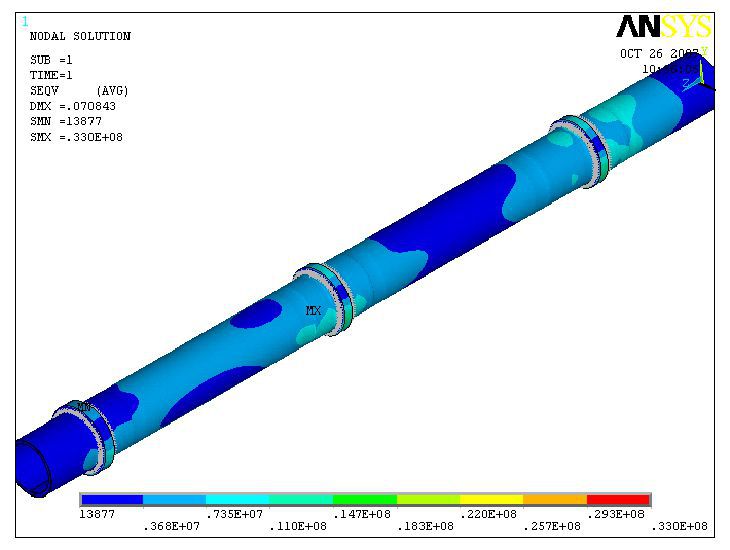

Finite element analysis is employed for strength calculation of kiln drum, kiln tyre (riding ring), support roller, support roller shaft, girth gear, pinion and other key components to identify the optimal structure, and ensure the reliability of the rotary kiln.

More

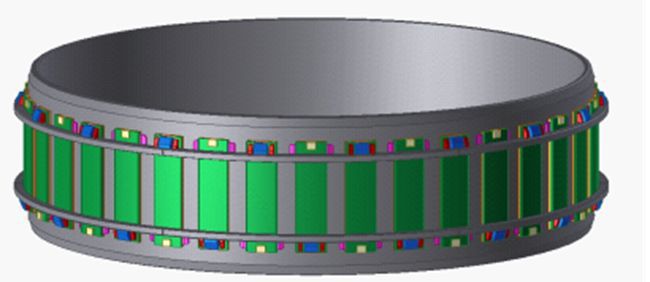

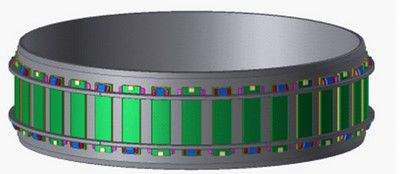

Filler bars

Floating filler bars with double-layer design makes filler bar replacing easier and quicker.

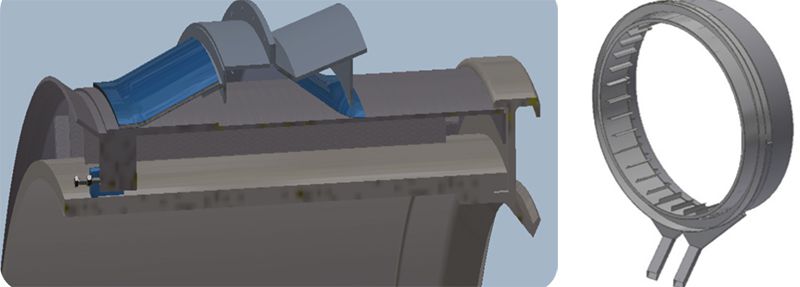

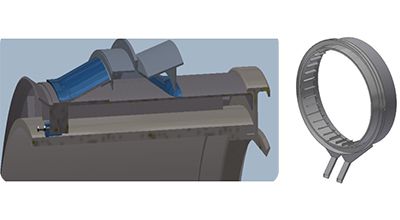

Kiln inlet & outlet seal

Kiln inlet and outlet sealing system combines cold air seal, double leaf seal and labyrinth seal to prevent dust and hot gas from escaping from the kiln.

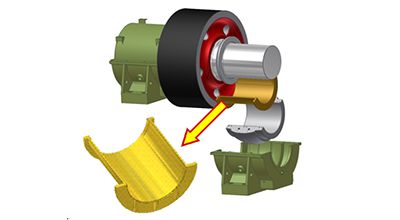

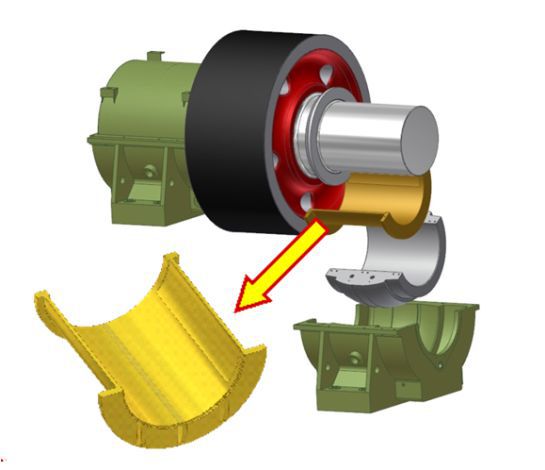

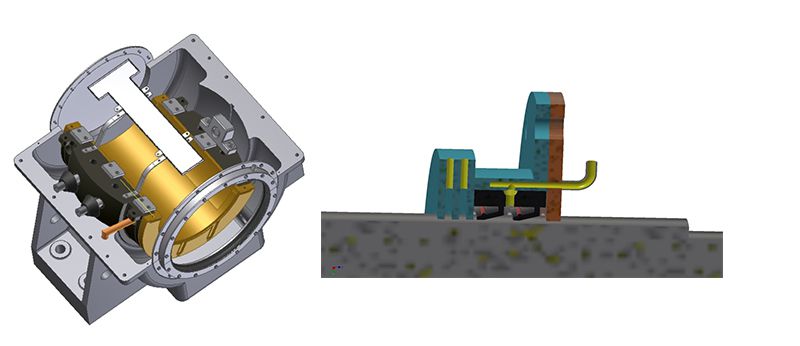

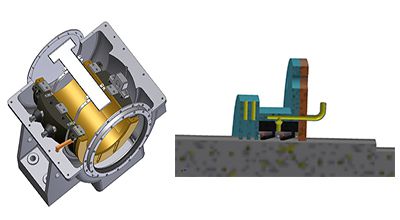

Kiln support roller unit

The design of small contact angle between the roller shaft and bearing bush can help create efficient oil film to improve lubrication effect. The appropriate gap can compensate deformantions caused by heavy loads, thus ensuring the contact between tyre and support rollers to be even.

Seal structure

Deliberate kiln seal design efficiently avoids lubricant leaks.
Rational sealing structure enables an optimal performance and efficiency.

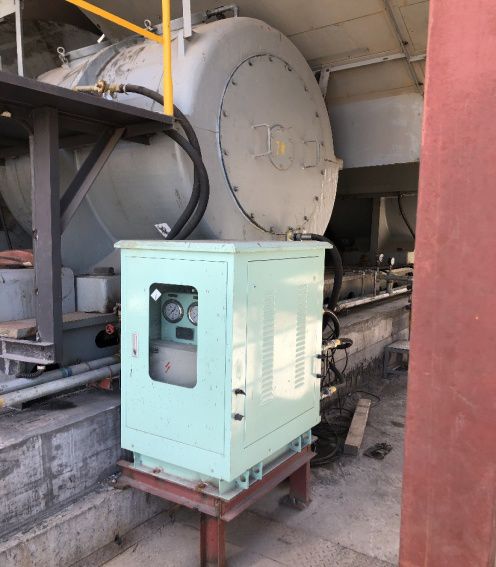

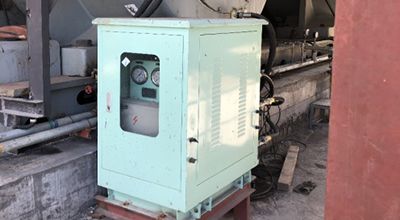

Lubrication system for support roller unit

Support roller bearings are grease-lubricated prior to start-up of the rotary kiln using lubrication system, which can also conduct removal of contaminants, and oil temperature control to prevent bearing temperature form being too high.

Notes:

• Mentioned above are only general specifications, we can customize your rotary kiln according to your specific requirements.
• Rotary kilns of less than 5000t/d in capacity are not listed above.
• Rotary kilns of specifications in between general specifications are not listed above.

•
  Manufacturing

  Casting and Forging Capacity
  We have four production lines that have the capacity to produce large steel castings, large high-value forgings, large annular parts and large non-ferrous metal parts respectively.

  Read More
•
  Service

  Lifetime service
  With state-of-the-art technology and rich experience, CITIC HIC works through each critical step to individualize the optimal process and performance as per customer needs. Our lifetime service covers equipment installation, testing, maintenance, refurbishing, remote monitoring & diagnosis, upgrading & retrofitting, and performance guarantee.

  Read More
