Multi-Cylinder Hydraulic Cone Crusher

  • Home
  • Products
  • Crushers
  • Sizer Crusher

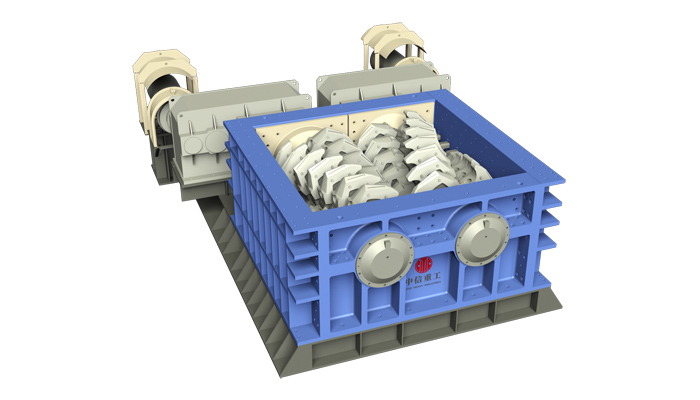

Sizer Crusher

The sizer crusher can meet the requirements of crushing systems with a maximum capacity of 10,000 tons per hour. We have achieved the research, development, and manufacturing capabilities for ten-thousand-ton-per-hour sizer crushing stations. Our sizer crushers have been successfully applied in various fields, including open-pit coal mines, underground coal mines, limestone, medium-soft metal mines, crushing of tunnel waste rocks, and laterite nickel ores.

Features
  • High throughput capacity: Suitable for handling large quantities of material with a capacity of up to 10,000 t/h.
  • Versatile application: Successfully applied in various mining fields, including coal, limestone, and nickel ore processing.
  • Durable and efficient: Built to handle demanding environments and ensure long-lasting performance.
Technical Specifications
Model Sizer diameter (mm) Length (mm) Max. feed size (mm) Output size (mm) Max. capacity (t/h)
2PGC-1300×1800 1300 2000 1200 ≤300 1200
2PGC-1300×2100 1300 2000 1200 ≤300 1500
2PGC-1370×2400 1370 2500 1500 ≤300 3500
2PGC-1630×2500 1630 3500 1800 ≤400 4000
2PGC-1630×3000 1630 3800 1800 ≤400 6000
2PGC-1630×4200 1630 4000 1800 ≤400 7500
2PGC-1630×4500 1630 4500 1800 ≤400 10000

Note1: Actual production capacity depends on the actual processing circuit and ore properties. The capacity values above are calculated based on a bulk density of 1.6t/m³ and medium hardness ores.

Note2: The above parameters are for reference only and are subject to detailed engineering.

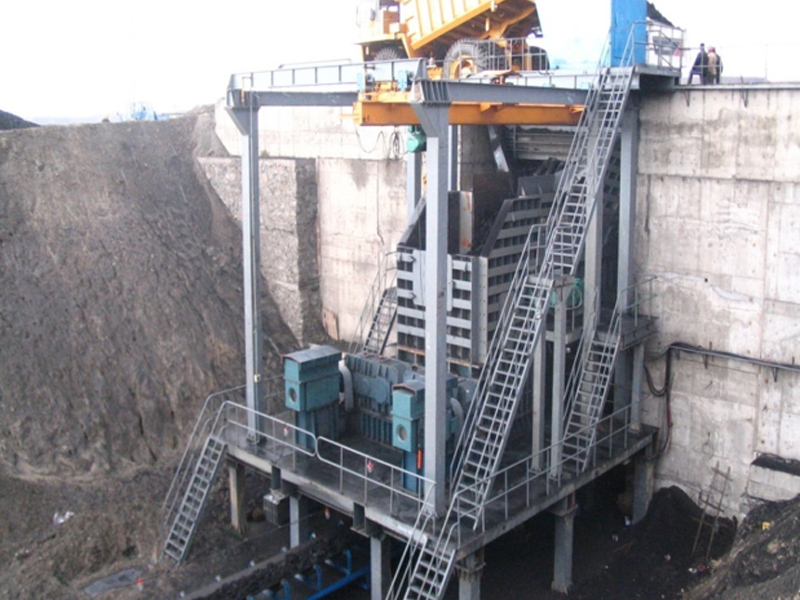

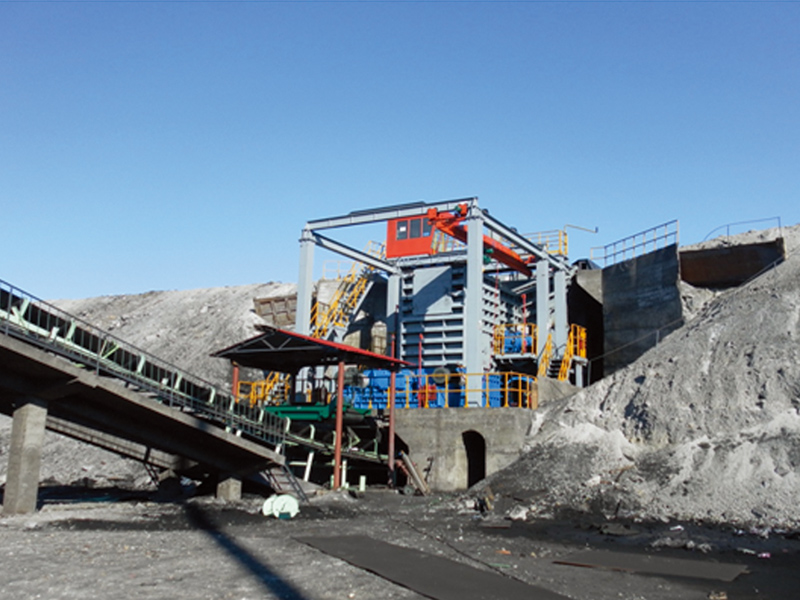

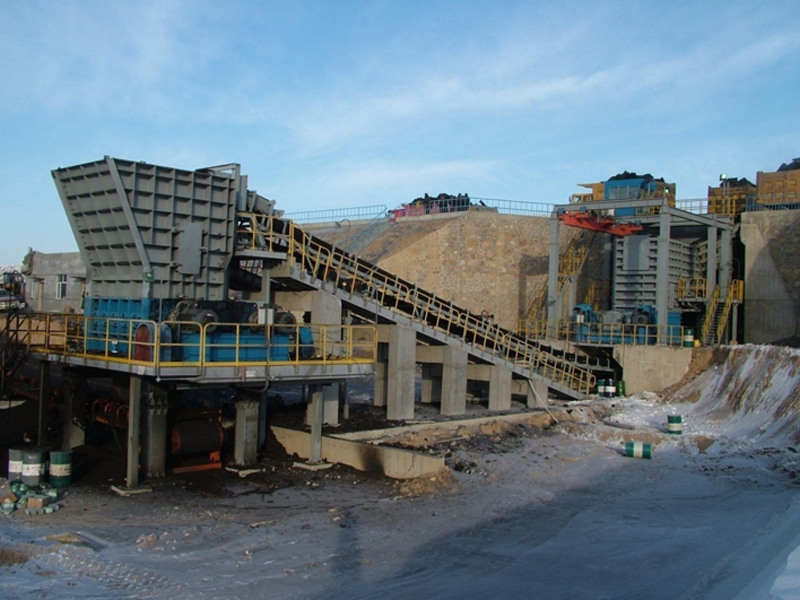

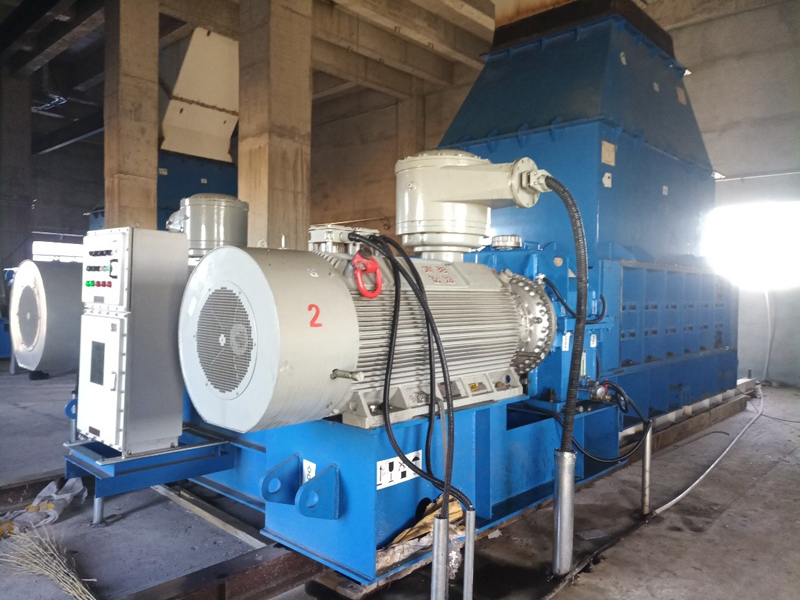

Case Study
TBEA Group
  • Name of Client: TBEA Group
  • Project: Tianshan Energy Project
  • Location: China
  • Crusher Model: 2PGCF-870
  • Material: Coal
  • Capacity: 50 million tons / year
  • Year of Manufacture: 2021
Wulagai Management Zone Hongyu Industry
  • Name of Client: Wulagai Management Zone Hongyu Industry
  • Project: Hongyu Mine
  • Location: China
  • Crusher Model: 2PGC-1300
  • Material: Coal
  • Capacity: 22 million tons / year
  • Year of Manufacture: 2010
Shenhua Baorixile Energy Industry
  • Name of Client: Shenhua Baorixile Energy Industry
  • Project: Hongyu Mine
  • Location: China
  • Crusher Model: 2PGC-1630
  • Material: Coal
  • Capacity: 10 million tons / year
  • Year of Manufacture: 2006
Xilingol Mengdong Energy Group
  • Name of Client: Xilingol Mengdong Energy Group
  • Project: Mengdong Energy
  • Location: China
  • Crusher Model: 2PGC-1630
  • Material: Coal
  • Capacity: 20 million tons / year
  • Year of Manufacture: 2010
  • Manufacturing
    Manufacturing

    Casting and Forging Capacity
    We have four production lines that have the capacity to produce large steel castings, large high-value forgings, large annular parts and large non-ferrous metal parts respectively.

  • Service
    Service

    Lifetime service
    With state-of-the-art technology and rich experience, CITIC HIC works through each critical step to individualize the optimal process and performance as per customer needs. Our lifetime service covers equipment installation, testing, maintenance, refurbishing, remote monitoring & diagnosis, upgrading & retrofitting, and performance guarantee.
